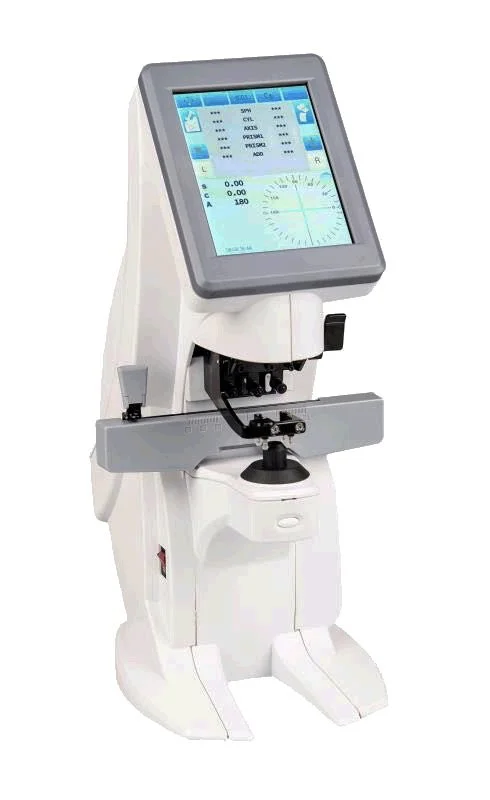

GOE ALM-700 AUTO Lensmeter
User friendly interface with easy operations. Fast, high accuracy readings.
Capability of measuring the colored lens with 10% light transmittance.
UV Transmittance reading.
Auto progressive lens reading mode.
Built-in high-speed thermal printer.
Specification:
SPHERE: -25.00D- +25.00D--optical lenses
-25.00D- +25.00D（BC=6.00-9.00-- contact lens
(0.01D/0.12D/0.25DSTEPS)
CYLINDER: 0.00D-±10.00D(-,MIX,+)
(0.01D/0.12D/0.25DSTEPS)
AXIS: 0°-180°（1°STEPS）
ADD: 0.00D-±10.00D(Add and Ad2)
(0.01D/0.12D/0.25DSTEPS)
PRISM: 0.00△-10.00△（horizontal ,vertical）
(0.01D/0.12D/0.25DSTEPS)
PRISM MODE: △，θ，Base in/Out,Base Up/Down
PD MEASURING: 20.0-49.5MM(left/right)
LENS DIAMETER: Φ20MM-Φ100MM
Φ5MM--CONTACT LENS DIAMETER
UV: ＞10%（±15.00D-±25.00D, ＞20%）
ABBE: 20-60
DISPLAY: 5.7" colorful TFT LCD
PRINTER: thermal printer
DATA INTERFACE: RS-232
POWER: AC100(±10%)-240(±10%)V 50/60HZ 40VA
DIMENSIONS: 190（W）×205(D) ×418(D)MM
WEIGHT: 9.9lbs / 4.5KG
