Welch Allyn Direct Ophthalmoscopes

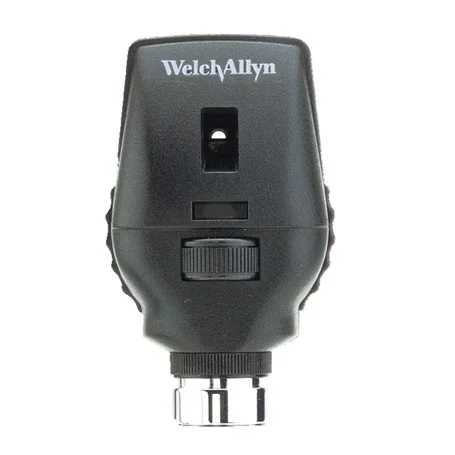

3.5V Standard Ophthalmoscope
Multiple aperture/filter options, combined with halogen light provide long-lasting, reliable performance for general and specialist examinations. A versatile ophthalmoscope at an economical price.
- Halogen light for true tissue color and consistent, long-lasting illumination
- Apertures available: micro, small, large, fixation target, slit, red-free filter
- 28 focusing lenses with a range of -25 to +40 diopters
- Rubber brow rest prevents scratching of eyeglasses
- Compatible with all existing Welch Allyn 3.5 V power sources
- Look for the traditional "flat-top" design you've come to trust
Welch Allyn 11720
3.5V Coaxial Ophthalmoscope
The patented Welch Allyn Coaxial Vision System facilitates ophthalmoscopy by enabling easier entry into the eye, a larger field of view, and reduced glare compared to standard ophthalmoscopes.
- Halogen HPX® lamp illumination for true tissue color
- 18 unique aperture/filter combinations for greater versatility
- Polarizing filter virtually eliminates corneal reflection
- Detect corneal abrasions with the cobalt blue filter
- Compatible with all existing Welch Allyn 3.5 V power sources
- Look for the traditional "flat-top" design you've come to trust
Welch Allyn 11730
3.5V AutoStep® Coaxial Ophthalmoscope
Patented Welch Allyn Coaxial Vision optics, combined with 68 lenses in single-diopter steps, for the precision you need to conduct a quality eye exam.
- Halogen HPX® lamp illumination for true tissue color
- 18 unique aperture/filter combinations for greater versatility
- Polarizing filter virtually eliminates corneal reflection
- 68 lenses in single-diopter steps for precise resolution (+38 to -30)
- Compatible with all existing Welch Allyn 3.5 V power sources
- Look for the traditional "flat-top" design you've come to trust
Welch Allyn 11735
Prestige™ Coaxial-Plus Ophthalmoscope
Patented Welch Allyn Coaxial Vision optics, combined with 68 lenses in single-diopter steps for the precision you need to conduct a quality eye exam. Two unique filter selections provide optimum light levels for all types of eye exams.
- Halogen HPX® lamp illumination for true tissue color
- 18 unique aperture/filter combinations for greater versatility
- Opacity setting filter aids easy eye entry with the brightest Halogen HPX light
- Neutral density filter allows for entering healthy eyes without unwanted reflex
- 68 lenses in single-diopter steps for precise resolution (+38 to -30)
- Compatible with all existing Welch Allyn 3.5 V power sources
- Look for the traditional "flat-top" design you've come to trust

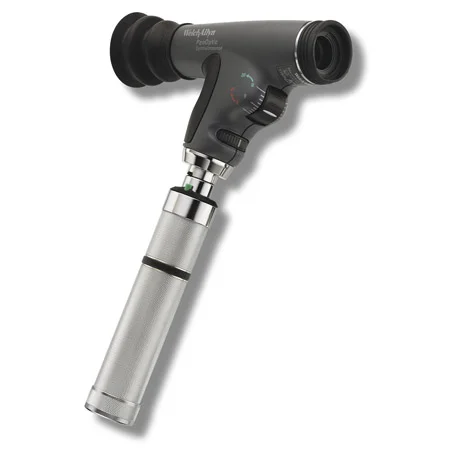

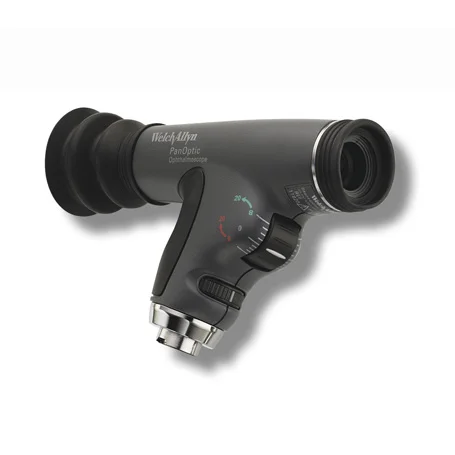

PanOptic™ Ophthalmoscope
The revolutionary PanOptic Ophthalmoscope addresses the fundamental challenge in ophthalmoscopy—to get a good view of the fundus in order to make a sufficient assessment. Patented Axial PointSource™ Optics make it easy to enter undilated pupils, offering a 25º field of view, resulting in a view of the fundus that's 5X greater than you see with a standard ophthalmoscope in an undilated eye. Direct viewing of the fundus through the PanOptic provides better images of the retinal changes caused by hypertension, diabetic retinopathy, glaucoma, and papilledema to enable clinicians to make these diagnoses earlier.
- 5X larger view of the fundus vs. standard ophthalmoscopes in an undilated eye
- Digitally capture, store, and share fundus images by combining with iExaminer
- Greater working distance improves comfort for both practitioner and patient
- Dynamic focusing wheel allows continuous, smooth action and more precise control
- Halogen HPX® lamp provides bright, white light
- Compatible with all existing Welch Allyn 3.5 V power sources
